welcome to the
Invebo SoundDock Diagnostics Wizard
Use this tool to diagnose the fault with the SoundDock and it will give you the best solution to fix this.
|
0357... |
0402... |
0430... |
04937... |
0498... |
05014... |
05027... |
052395... |
052398... |
0527... |
0585... |
NONE OF ABOVE / UNKNOWN |

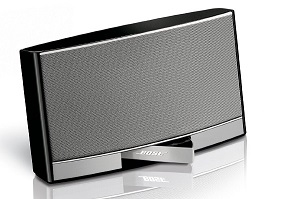

Your SoundDock is a SoundDock Original Type A which looks like the SoundDock above (colours vary)
If this does not look like your SoundDock please go back and double check your serial number and select the correct option.
Yes |
No |
Your SoundDock is a SoundDock Original Type B which looks like the SoundDock above (colours vary)
If this does not look like your SoundDock please go back and double check your serial number and select the correct option.
Yes |
No |
Yes |
No |
Your power supply is faulty and will need to be exchanged for a working one.
The 4-pins in the power plug are visible in the below image |
Yes |
No |
As can be seen the pins are present and visible |
Yes |
No |
Your sound processor is faulty and will need to be serviced at our repair centre. (we do not sell replacement sound processors)
Please click below for the sound processor diagnostic and services we offer for the SoundDock Original sound processor.
|
Yes
|
No
|
Your docking connector is faulty and will need to be replaced by one of our replacement docking connectors.
Your SoundDock is a SoundDock Original Type A.
This is compatible with the following docking connector replacement boards:
standard replacement and will not upgrade SoundDock
repair the fault as well as upgrading your SoundDock to charge iPod Touchs &
iPhones up to 4th generation.
repair the fault as well as upgrading your SoundDock to both charge iPod Touchs &
iPhones up to 4th generation as well as upgrading your SoundDock to Bluetooth
allowing you to stream music wirelessly to it
Please click the link below for the different SoundDock Original docking connectors:

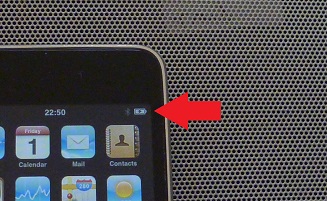

Charge icon in the top right corner of the device |
Yes |
No |
iPod Original |
iPod Photo |
iPod Mini |
iPod Classic |
iPod Nano |
iPod Shuffle |
iPod Touch |
iPhone |
NONE OF THE ABOVE / UNKNOWN DEVICE |
The SoundDock Original Type A is an early SoundDock which used an earlier form of charging to charge the Apple devices docked in its 30-pin connector called FireWire charging.
Your Apple device supports FireWire charging so should be charging when docked in the SoundDock.
Since it does not this indicates an issue with the docking connector which may not be making connection and therefore not charging the device.
Continue |
Please ignore this option |
The SoundDock Original Type A is an early SoundDock which used an earlier form of charging to charge the Apple devices docked in its 30-pin connector called FireWire charging.
Your Apple device does not support FireWire charging since it is a later Apple device which only supports USB charging.

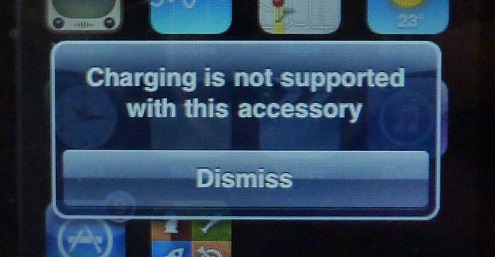

This will produce an error message saying something such as "charging not supported by this device"
If you receive this message then it indicates the SoundDock is receiving charge fine and the docking connector is intact and it is likely an issue with the sound processor if it is not playing sound.
Please keep this in mind and continue.
We do sell an upgrade board to allow the SoundDock Original Type A to charge with USB Charge. This is called the "USB Charge Upgrade Kit"
If your SoundDock doesn't charge but does play sound and this is the only fault then the USB Charge Upgrade Kit will repair this issue.
Continue |
Please ignore this option |
If you do not know the generation please see this website: https://support.apple.com/en-gb/HT1353
|
1st Generation |
2nd Generation |
3rd Generation |
4th+ Generation |
If you do not know what kind of Apple device you have you can use this website here to find it out
Alternatively you could try with a different Apple device or borrow one from someone.
This question is on any sound played even if distorted or crackling
|
Yes |
No |

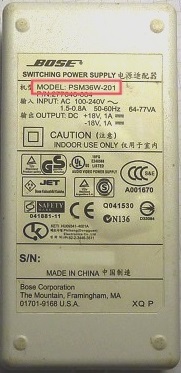

Model number can be found on the back of the power supply |
PSM36W-201 |
PSM36W-208 |

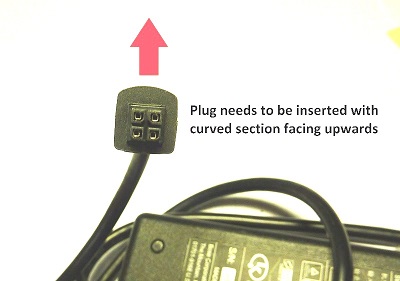

This fault is usually caused by the SoundDock's power supply cable being plugged into the back of the SoundDock the wrong way around.
Continue |
Please ignore |
Since your device you're testing the SoundDock with does not support FireWire we cannot give a full diagnosis.
If you were getting an error message such as:
Then it indicates the docking connector of your SoundDock is working and intact and it is much more likely an issue with your sound processor.
We would suggest in this case you order a sound processor diagnostic service and send us your sound processor, docking connector and ribbon cable for us to diagnose the issue with.
If you are not getting the above error message:-
Then it is likely to be an issue with the docking connector, inwhich case you could purchase a replacement docking connector and see if this solves the issue.
If not then you can send it back to us for a refund and carry out a "free sound processor diagnostic check"
Below links are for the "Free Sound Processor Diagnostic Check"
Yes |
No |
Yes |
No |
CONGRATULATIONS!
You have a working Bose SoundDock by the sounds of things
If you believe this to not be the case or have a different fault which does not fufill any of the diagnostic questions either restart the diagnostics or send an email to sales@invebo.com and a member of our support team will try to help you as soon as possible.
Yes |
No |
Yes |
No |
We have been unable to diagnose the fault with your SoundDock/you are experiencing an uncommon fault
Please send an email describing your fault in detail to: sales@invebo.com
and a member of our support team will try to help you as soon as possible.
Otherwise feel free to start the diagnostic wizard again, incase of errors.
This fault is usually caused by the SoundDock's power supply cable being plugged into the back of the SoundDock the wrong way around.
Continue |
Please ignore |
Model number can be found on the back of the power supply |
PSM36W-201 |
PSM36W-208 |
Yes |
No |
The 4-pins in the power plug are visible in the below image |
Yes |
No |
Your power supply is faulty and will need to be exchanged for a working one.
Please click below for the power supply exchange services we offer for the SoundDock Original's power supply.
As can be seen the pins are present and visible |
Yes |
No |
|
Yes
|
No
|
Your sound processor is faulty and will need to be serviced at our repair centre. (we do not sell replacement sound processors)

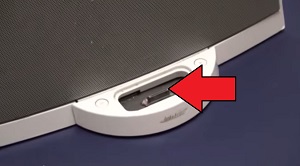

Your docking connector is faulty and will need to be replaced by one of our replacement docking connectors.
Your SoundDock is a SoundDock Original Type B.
This is compatible with the following docking connector replacement boards:
standard replacement and will not upgrade SoundDock
repair the fault as well as upgrading your SoundDock to to Bluetooth
allowing you to stream music wirelessly to it
Please click the link below for the different SoundDock Original docking connectors:
Charge icon in the top right corner of the device |
Yes |
No |
Yes |
No |
iPod Original |
iPod Photo |
iPod Mini |
iPod Classic |
iPod Nano |
iPod Shuffle |
iPod Touch |
iPhone |
NONE OF THE ABOVE / UNKNOWN DEVICE |
iPod Generation 1-3 |
iPod Generation 4+ |
Your SoundDock won't be able to charge the iPod Original due to it not supporting USB charging.
Your SoundDock should however still play music.
If it does not play music then it is likely an issue with the sound processor or docking connector so in this case we'd suggest sending your sound processor, ribbon cable and docking connector for a "free sound processor diagnostic check".
Continue |
Please ignore this option |
Your SoundDock should be able to charge your Apple device.
Since you're not getting any charge to your device it indicates you may have a fault with your docking connector and this might need replacing.
Please keep this in mind and continue.
Continue |
Please ignore this option |
If you do not know what kind of Apple device you have you can use this website here to find it out
Alternatively you could try with a different Apple device or borrow one from someone.
Continue |
Please ignore this option |
DICKBUTT SAYS: "DOWN WITH THE SYSTEM!"
Yes |
No |
Yes |
No |
Yes |
No |
Yes |
No |
CONGRATULATIONS!
You have a working Bose SoundDock by the sounds of things
If you believe this to not be the case or have a different fault which does not fufill any of the diagnostic questions either restart the diagnostics or send an email to sales@invebo.com and a member of our support team will try to help you as soon as possible.
Yes |
No |
Yes |
No |
We have been unable to diagnose the fault with your SoundDock/you are experiencing an uncommon fault
Please send an email describing your fault in detail to: sales@invebo.com
and a member of our support team will try to help you as soon as possible.
Otherwise feel free to start the diagnostic wizard again, incase of errors.

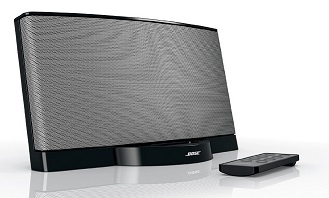

Your SoundDock is a SoundDock Series II which looks like the SoundDock above (colours vary)
If this does not look like your SoundDock please go back and double check your serial number and select the correct option.
Please see this diagnostic video for the SoundDock Series II: https://www.youtube.com/watch?v=zFCOCVVY9NM
You can also send us an email to: sales@invebo.com and a member of our customer support will be able to assist you in diagnosing the issue with your SoundDock.
Your SoundDock is a SoundDock Portable which looks like the SoundDock above (colours vary)
If this does not look like your SoundDock please go back and double check your serial number and select the correct option.
Please see this diagnostic video for the SoundDock Portable: https://www.youtube.com/watch?v=FYbwpru_lK8
You can also send us an email to: sales@invebo.com and a member of our customer support will be able to assist you in diagnosing the issue with your SoundDock.
We only do repairs and replacement boards for the SoundDock Original, SoundDock Series II and SoundDock Portable.
If your serial number is not one of the previous options it means it might be a SoundDocking system which we do not repair (such as the SoundDock III)
If your SoundDock looks like one of the SoundDock's below then it might mean you have a serial number we do not recognise.
If you do have this and are sure the SoundDock is one of the ones in the images below please send us an email to: sales@invebo.com
If you do not know your SoundDock serial number then you can use the images below to identify your SoundDock then select the correct SoundDock below.
SoundDock Original
SoundDock Series II
SoundDock Portable
SoundDock Original |
SoundDock Series II |
SoundDock Portable |
NONE OF THE ABOVE |
SoundDock Series II |
SoundDock Portable |
For the SoundDock Original there are two types which can only be distinguished by their serial number.
For this reason you will need to know the serial number of your SoundDock before we start the diagnosis.
Please find this and start again.
If your SoundDock looks like none of the previous images then it is likely you have a different kind of SoundDock which we do not repair.
We would suggest going directly to Bose for repairs on this speaker system.
This question is on any sound played even if distorted or crackling
|
Yes |
